221789-1
Manufacturer:
TE Connectivity
Mfr.Part #:
221789-1
Datasheet:
Description:

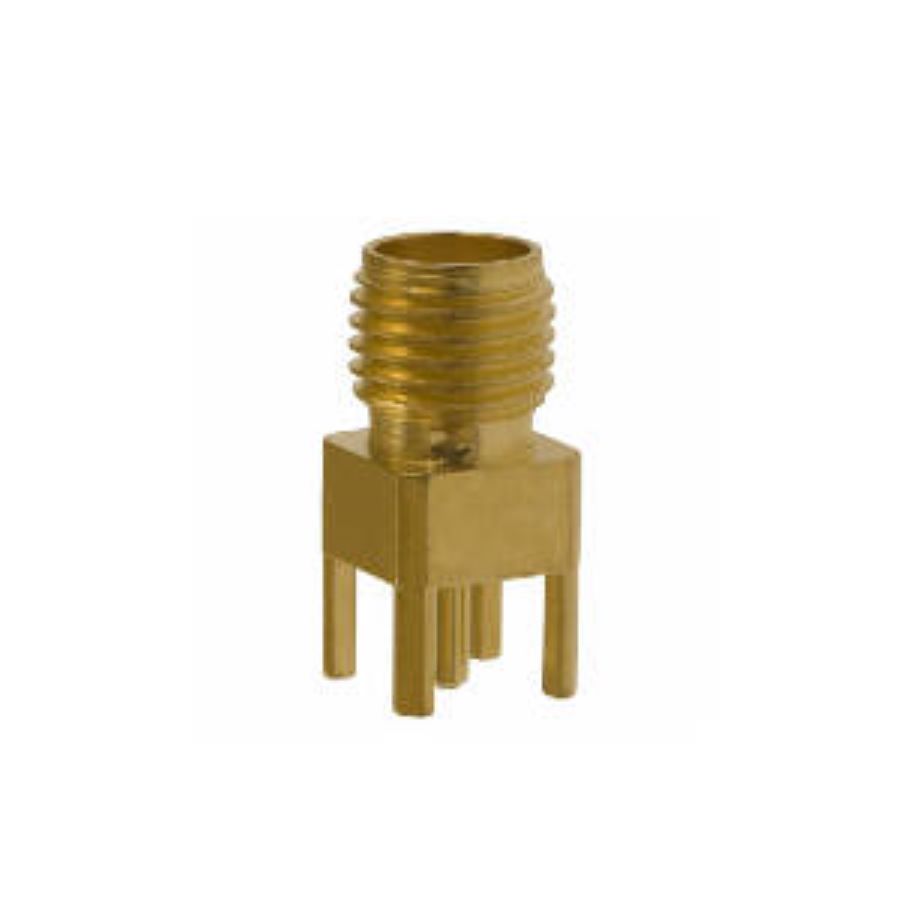

RF / Coaxial Connectors Through Hole SMA 50 Ω
| Parameter | Value |
|---|---|
| Length | 13.46 mm |
| Termination | Through Hole |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Height | 9.53 mm |
| Packaging | Bulk |
| Voltage Rating | 335 V |
| Depth | 6.35 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Dielectric Material | Fluoropolymer |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper |
| Frequency | 4 GHz |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Female |
| Number of Contacts | 1 |
| Body Material | Brass |
| Connector Type | SMA |
| Max Frequency | 4 GHz |
| Number of Positions | 1 |
| Insulation Material | Polytetrafluoroethylene |
| Fastening Type | Threaded |
| Outside Diameter | 6.35 mm |
| Body Plating | Gold |
| Tail Length | 3.94 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
